Description & Specs

Trade numbers:

  • Y 5 KPP 332

  • 8180-4

Replaces 0 241 145 515

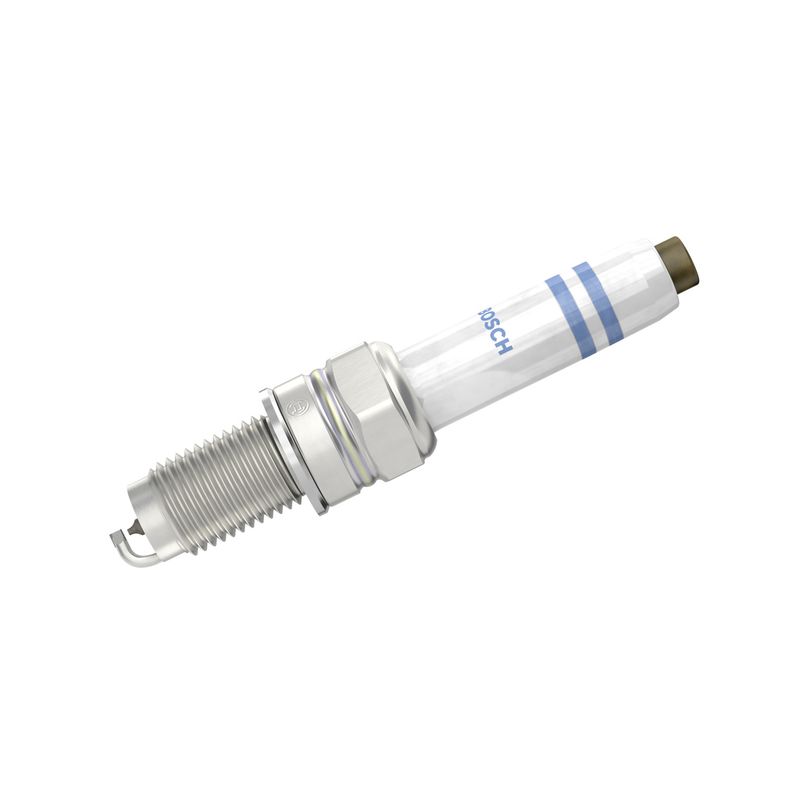

Bosch Double-Platinum Spark Plug

The Bosch double platinum spark plugs have platinum firing pins at both the centre and a ground electrode. Developed to OE specifications and designed for better performance and life.

Features and Benefits:

Outstanding spark plug technology which meets exactly the requirements of the respective engine.

Fine wire 360 degree continuous laser welded platinum firing pins and a yttrium enhanced tapered platinum ground electrode inlay for improved combustion and service life.

Large copper core center electrode enables an improved heat transfer.

Nickel-plated housing and thread for protection against corrosion and seizure in the aluminum cylinder head without the need for lubrication.

Factory pre-set electrode gap enables hassle-free replacement.

Note: Always use the Bosch installation guide when replacing your spark plugs.

Specifications

Brand Bosch
MPN 0241145523
Connector type Napf
Electrode Gap [mm] 0.7 mm
Number of pins 1 - pin connector
Spanner Size 16
Spark Position [mm] 4 mm
Thread Length [mm] 19 mm
Thread Size M 12 x 1,25
Tightening Torque [Nm] 23 Nm
Manufacturer Numbers
BORGWARD P500000647
SKODA 04E905612D
VW 04C905612C , 04E905612B , 04E905612C , 04E905612D , 04E905601 , 04E905612
Brand References
NGK 97861
TOPRAN 117 105
Trade numbers
8180-4
Y 5 KPP 332
