Description & Specs
Trade numbers:
-
FR 8 NPP 30 W
-
6740-4

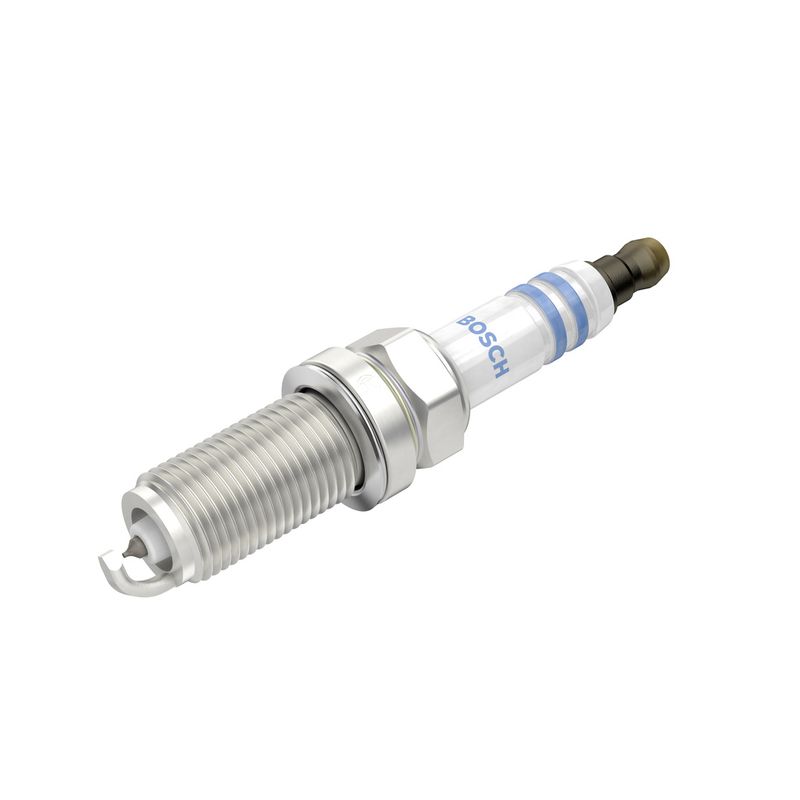

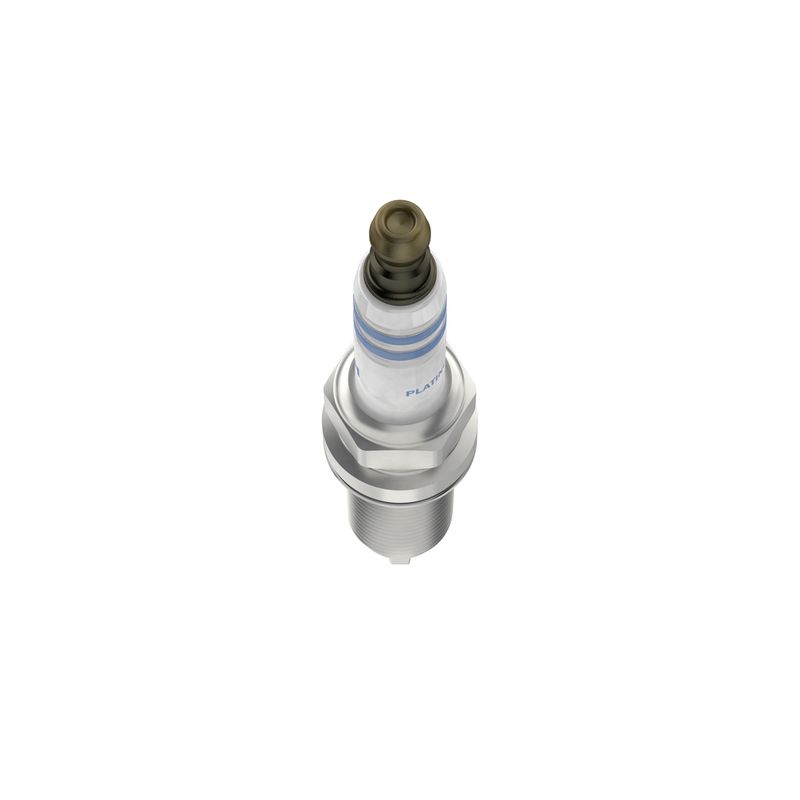

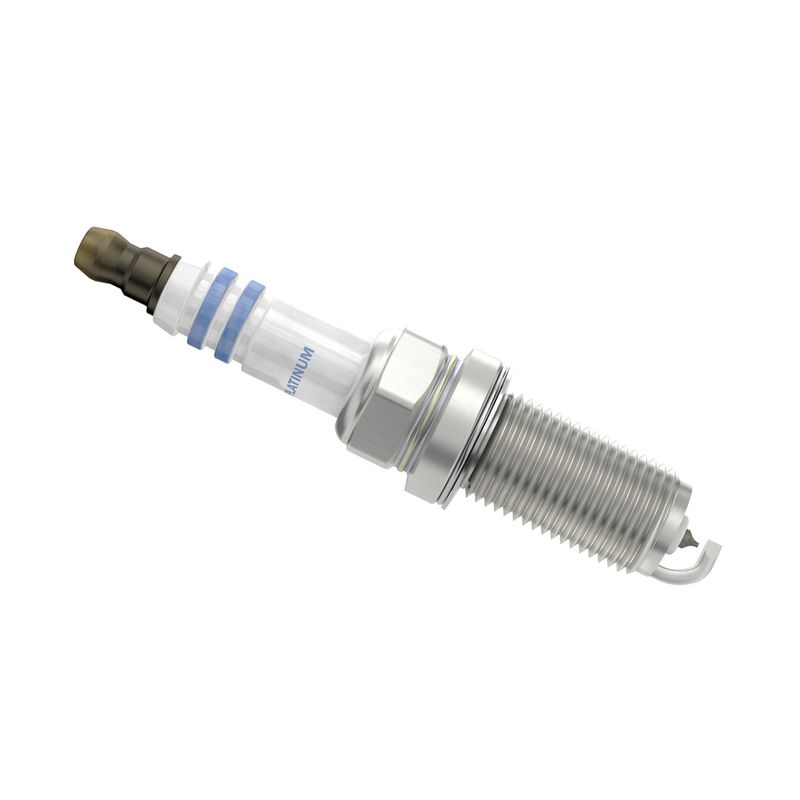

Bosch Platinum Spark Plug
The Bosch platinum spark plugs have platinum firing pins at the centre electrode. Developed to OE specifications and designed for better performance and life.
Features and Benefits:
Outstanding spark plug technology which meets exactly the requirements of the respective engine.
Fine wire 360 degree continuous laser welded platinum firing pins for improved combustion and service life.
Large copper core center electrode enables an improved heat transfer.
Nickel-plated housing and thread for protection against corrosion and seizure in the aluminum cylinder head without the need for lubrication.
Factory pre-set electrode gap enables hassle-free replacement.
Note: Always use the Bosch installation guide when replacing your spark plugs.
Specifications
Brand
Bosch
MPN
0242230602
Electrode Gap [mm]
0.9
mm
Number of pins
1
- pin connector
Spanner Size
16
Spark Position [mm]
4
mm
Thread Length [mm]
26.5
mm
Thread Size
M 14 x 1,25
Tightening Torque [Nm]
28
Nm
// 03 COMPATIBILITY
Fits 66 vehicles
Verified against TecDoc. Expand a model to see variants, or use the search to narrow down.
Citroen
21 variants · 15 models
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 10/2000 - 12/2008 | 1.6 16V (MFNFU) | MF, GJK, GFK | Mpv | Petrol | 1.6 16V (MFNFU) 1.6L 80kW | |
| 04/2008 - 12/2018 | 1.6 | B9 | Box body/mpv | Petrol | 1.6 1.6L 66kW | |
| 04/2008 - 12/2018 | 1.6 | B9 | Box body/mpv | Petrol | 1.6 1.6L 80kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 04/2008 - 03/2014 | 1.6 | B9 | Mpv | Petrol | 1.6 1.6L 66kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 01/2004 - 12/2008 | 1.6 | JM | Hatchback | Petrol | 1.6 1.6L 80kW | |
| 07/2006 - 12/2008 | 1.6 VTS | JM | Hatchback | Petrol | 1.6 VTS 1.6L 90kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 01/2003 - 08/2010 | 1.6 16V | FC, FN | Hatchback | Petrol | 1.6 16V 1.6L 80kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 01/2004 - 11/2010 | 1.6 | HB | Convertible | Petrol | 1.6 1.6L 80kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 03/2005 - 11/2009 | 1.6 16V | LA | Coupe | Petrol | 1.6 16V 1.6L 80kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 10/2006 - 08/2013 | 2.0 i 16V | UA | Mpv | Petrol | 2.0 i 16V 2.0L 103kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 03/2005 - 11/2009 | 1.6 16V | LC | Hatchback | Petrol | 1.6 16V 1.6L 80kW | |
| 03/2005 - 11/2009 | 2.0 16V | LC | Hatchback | Petrol | 2.0 16V 2.0L 103kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 09/2007 - 11/2009 | 2.0 i 16V | UD | Mpv | Petrol | 2.0 i 16V 2.0L 103kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 06/2001 - 08/2004 | 2.0 16V (DCRFNC, DCRFNF) | DC | Hatchback | Petrol | 2.0 16V (DCRFNC, DCRFNF) 2.0L 100kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 06/2001 - 08/2004 | 2.0 16V (DERFNF, DERFNC, RERFNC) | DE | Wagon | Petrol | 2.0 16V (DERFNF, DERFNC, RERFNC) 2.0L 100kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 09/2004 - 08/2008 | 2.0 16V (RCRFJB, RCRFJC) | RC | Hatchback | Petrol | 2.0 16V (RCRFJB, RCRFJC) 2.0L 103kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 09/2004 - 01/2008 | 2.0 16V (RERFJB, RERFJC) | RE | Wagon | Petrol | 2.0 16V (RERFJB, RERFJC) 2.0L 103kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 02/2008 - 08/2008 | 2.0 16V (RDRFJC, RDRFJF) | RD | Sedan | Petrol | 2.0 16V (RDRFJC, RDRFJF) 2.0L 103kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 02/2001 - 03/2005 | 1.6 16V | N1 | Hatchback | Petrol | 1.6 16V 1.6L 80kW | |
| 02/2001 - 09/2003 | 2.0 16V | N1 | Hatchback | Petrol | 2.0 16V 2.0L 100kW | |
| 02/2001 - 03/2005 | 1.6 16V | N0 | Coupe | Petrol | 1.6 16V 1.6L 80kW |
Hyundai
2 variants · 2 models
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 01/2011 - 06/2014 | 2.0 i | YF | Sedan | Petrol | 2.0 i 2.0L 121kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 01/2010 - 10/2015 | 2.0 | LM, EL, ELH | Suv | Petrol | 2.0 2.0L 122kW |
KIA
4 variants · 3 models
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 01/2009 - 03/2013 | 2.0 | TD | Hatchback | Petrol | 2.0 2.0L 115kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 01/2009 - 12/2013 | 2.0 CVVT | TD | Coupe | Petrol | 2.0 CVVT 2.0L 115kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 07/2010 - 10/2015 | 2.0 CVVT | SL | Suv | Petrol | 2.0 CVVT 2.0L 120kW | |
| 07/2010 - 09/2015 | 2.0 CVVT AWD | SL | Suv | Petrol | 2.0 CVVT AWD 2.0L 120kW |
Mitsubishi
2 variants · 2 models
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 05/2004 - 12/2010 | 2.4 MIVEC (NA4W) | NAW, BA | Mpv | Petrol | 2.4 MIVEC (NA4W) 2.4L 121kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 07/2004 - 10/2006 | 2.4 i MIVEC 4WD (CU5W) | CUW, ZE, ZF | Suv | Petrol | 2.4 i MIVEC 4WD (CU5W) 2.4L 120kW |
Nissan
20 variants · 11 models
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 02/2001 - 08/2010 | 4.5 (GF50) | F50 | Sedan | Petrol | 4.5 (GF50) 4.5L 206kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 01/2003 - 11/2008 | 1.4 | Z11 | Hatchback | Petrol | 1.4 1.4L 72kW | |
| 01/2003 - 11/2008 | 1.4 4x4 | Z11 | Hatchback | Petrol | 1.4 4x4 1.4L 72kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 08/2000 - 04/2002 | 3.5 (E51) | E51, E5 | Mpv | Petrol | 3.5 (E51) 3.5L 177kW | |
| 08/2000 - 04/2002 | 3.5 AWD (APWE50) | E50, E5 | Mpv | Petrol | 3.5 AWD (APWE50) 3.5L 177kW | |
| 05/2002 - 12/2010 | 3.5 AWD (NE51) | E51, E5 | Mpv | Petrol | 3.5 AWD (NE51) 3.5L 177kW | |
| 12/2004 - 12/2010 | 2.5 (ME51) | E51, E5 | Mpv | Petrol | 2.5 (ME51) 2.5L 137kW | |
| 12/2004 - 12/2010 | 2.5 AWD (MNE51) | E51, E5 | Mpv | Petrol | 2.5 AWD (MNE51) 2.5L 137kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 10/2003 - 06/2008 | 3.5 (PJ31) | J31 | Sedan | Petrol | 3.5 (PJ31) 3.5L 170kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 03/2007 - 06/2010 | 1.4 (BK12) | K12 | Hatchback | Petrol | 1.4 (BK12) 1.4L 72kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 12/2005 - 06/2011 | 4.0 4WD | D40 | Ute | Petrol | 4.0 4WD 4.0L 198kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 10/2001 - 12/2012 | 4.8 (Y61) | Y61, GR, GU | Closed off-road vehicle | Petrol | 4.8 (Y61) 4.8L 185kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 03/2002 - 12/2006 | 2.0 | WP12 | Wagon | Petrol | 2.0 2.0L 103kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 01/2001 - 12/2007 | 3.5 4x4 | V35 | Coupe | Petrol | 3.5 4x4 3.5L 206kW | |
| 02/2001 - 12/2007 | 3.5 (PV35) | V35 | Sedan | Petrol | 3.5 (PV35) 3.5L 200kW | |
| 01/2003 - 11/2006 | 3.5 (CPV35) | V35 | Coupe | Petrol | 3.5 (CPV35) 3.5L 206kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 08/2004 - 12/2007 | 3.5 (PM35) | M35 | Wagon | Petrol | 3.5 (PM35) 3.5L 200kW | |
| 08/2004 - 12/2007 | 3.5 AWD (PNM35) | M35 | Wagon | Petrol | 3.5 AWD (PNM35) 3.5L 200kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 10/2001 - 01/2006 | 2.5 4x4 | T30 | Suv | Petrol | 2.5 4x4 2.5L 132kW | |
| 02/2006 - 09/2007 | 2.5 4x4 | T30 | Suv | Petrol | 2.5 4x4 2.5L 121kW |
Peugeot
17 variants · 9 models
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 04/1999 - 10/2000 | 2.0 S16 | 2A/C | Hatchback | Petrol | 2.0 S16 2.0L 99kW | |
| 06/1999 - 12/2007 | 2.0 S16 | 2A/C | Hatchback | Petrol | 2.0 S16 2.0L 100kW | |
| 02/2001 - 12/2007 | 1.6 16V | 2A/C | Hatchback | Petrol | 1.6 16V 1.6L 80kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 06/2003 - 12/2007 | 1.6 16V (2DNFUF, 2DNFUR) | 2D | Convertible | Petrol | 1.6 16V (2DNFUF, 2DNFUR) 1.6L 80kW | |
| 06/2003 - 12/2007 | 2.0 S16 | 2D | Convertible | Petrol | 2.0 S16 2.0L 100kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 12/2001 - 09/2009 | 1.6 16V | 3A/C | Hatchback | Petrol | 1.6 16V 1.6L 80kW | |
| 03/2005 - 09/2009 | 2.0 16V | 3A/C | Hatchback | Petrol | 2.0 16V 2.0L 103kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 03/2005 - 09/2009 | 2.0 16V | 3E | Wagon | Petrol | 2.0 16V 2.0L 103kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 12/2004 - 04/2009 | 2.0 16V | 3B | Convertible | Petrol | 2.0 16V 2.0L 103kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 03/2005 - 09/2009 | 2.0 16V | 3H | Wagon | Petrol | 2.0 16V 2.0L 103kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 01/1999 - 08/2000 | 2.0 16V | 8B | Sedan | Petrol | 2.0 16V 2.0L 99kW | |
| 08/1999 - 07/2003 | 2.0 16V | 8B | Sedan | Petrol | 2.0 16V 2.0L 100kW | |
| 07/2000 - 05/2004 | 2.2 | 8B | Sedan | Petrol | 2.2 2.2L 116kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 09/2004 - 12/2011 | 2.2 (6D3FZE, 6D3FZH) | 6D | Sedan | Petrol | 2.2 (6D3FZE, 6D3FZH) 2.2L 116kW | |
| 08/2005 - 12/2011 | 2.2 16V (6D3FYH, 6D3FYE) | 6D | Sedan | Petrol | 2.2 16V (6D3FYH, 6D3FYE) 2.2L 120kW | |
| 10/2005 - 12/2011 | 2.2 16V | 6C | Coupe | Petrol | 2.2 16V 2.2L 120kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 09/2004 - 12/2011 | 2.2 | 6E, 6D | Wagon | Petrol | 2.2 2.2L 116kW |
| Manufacturer | Numbers |
|---|---|
| BAIC | BOC1093002055 |
| BYD | SMN158596 |
| DADI | MN158596 |
| DONGFENG (DFAC) | SMN158596 |
| FAW | SMN158596 |
| FODAY | MN158596 |
| FOTON | MN158596 |
| GONOW | MN158596 |
| GREAT WALL | SMN158596 |
| HUANGHAI | MN158596 |
| JMC | MN158596 |
| KAWEI AUTO | MN158596 |
| LANDWIND (JMC) | MN158596 |
| LTI | SMN158596 |
| MITSUBISHI | MN158596 , SMN158596 |
| SHUANGHUAN | MN158596 |
| SOUEAST | MN158596 , SMN158596 |
| ZHONGHUA (BRILLIANCE) | SMN158596 |
| ZHONGXING (ZX AUTO) | MN158596 |
| ZOTYE | MN158596 |
| Trade numbers |
|---|
| 6740-4 |
| FR 8 NPP 30 W |
