Description & Specs
Specifications

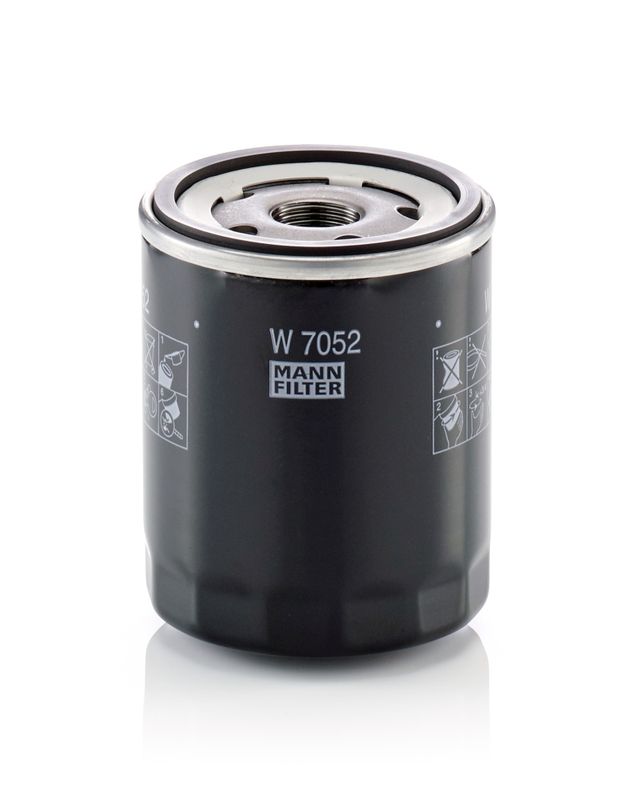

Brand
MANN-FILTER
MPN
W7052
Article Number of the recommended special tool
LS 7
Bypass Valve Opening Pressure [bar]
2.5
bar
EU General Product Safety Regulation (GPSR)
IEC 60417-6183 spec. mech. knowl. required
Filter Type
Spin-on Filter
Height [mm]
93
mm
Outer Diameter [mm]
76
mm
Seal Ring Inner Diameter [mm]
62
mm
Seal Ring Outer Diameter [mm]
71
mm
Supplementary Article/Supplementary Info 2
with two anti-return valves
SVHC
No SVHC substances available!
Thread Size
M20x1.5
// 03 COMPATIBILITY
Fits 10 vehicles
Verified against TecDoc. Expand a model to see variants, or use the search to narrow down.
VW
10 variants · 5 models
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 09/2009 - 08/2015 | 2.0 BiTDI | 7HM, 7HN, 7HF, 7EF, 7EM, 7EN | Bus | Diesel | 2.0 BiTDI 2.0L 132kW | |
| 09/2009 - 08/2015 | 2.0 BiTDI 4motion | 7HM, 7HN, 7HF, 7EF, 7EM, 7EN | Bus | Diesel | 2.0 BiTDI 4motion 2.0L 132kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 09/2009 - 08/2015 | 2.0 BiTDI | 7HA, 7HH, 7EA, 7EH | Van | Diesel | 2.0 BiTDI 2.0L 132kW | |
| 09/2009 - 08/2015 | 2.0 BiTDI 4motion | 7HA, 7HH, 7EA, 7EH | Van | Diesel | 2.0 BiTDI 4motion 2.0L 132kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 09/2009 - 08/2015 | 2.0 BiTDI | TRANSPORTER T5 (7JD, 7JE, 7JL, 7JY, 7JZ, 7F | Platform/chassis | Diesel | 2.0 BiTDI 2.0L 132kW | |
| 09/2009 - 08/2015 | 2.0 BiTDI 4motion | TRANSPORTER T5 (7JD, 7JE, 7JL, 7JY, 7JZ, 7F | Platform/chassis | Diesel | 2.0 BiTDI 4motion 2.0L 132kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 04/2015 - 12/2019 | 2.0 TDI | SGA, SGH, SHA, SHH | Van | Diesel | 2.0 TDI 2.0L 132kW | |
| 06/2015 - 12/2019 | 2.0 TDI 4motion | SGA, SGH, SHA, SHH | Van | Diesel | 2.0 TDI 4motion 2.0L 132kW |
| Date | Badge | Chassis | Body | Fuel | Engine | |
|---|---|---|---|---|---|---|
| 04/2015 - 11/2019 | 2.0 TDI | TRANSPORTER T6 (SFD, SFE, SFL, SFZ, SJD, SJ | Platform/chassis | Diesel | 2.0 TDI 2.0L 132kW | |
| 06/2015 - 11/2019 | 2.0 TDI 4motion | TRANSPORTER T6 (SFD, SFE, SFL, SFZ, SJD, SJ | Platform/chassis | Diesel | 2.0 TDI 4motion 2.0L 132kW |
| Manufacturer | Numbers |
|---|---|
| VAG | 03L115561 |
| Brand | References |
|---|---|
| BOSCH | F 026 407 202 |
| FEBI BILSTEIN | 48527 |
| MAHLE | OC 1053 |
| MEYLE | 100 322 0020 |
| TOPRAN | 115 290 |
| VAICO | V10-8655 |
| VALEO | 586183 |
