In stock

Bosch Double Platinum Spark Plug FQ5NPP332S

Fits Audi A3, A3 Limousine, A3 Sportback, VW Golf Vii L06K905601E

$18.78

MPN 0241245673

SKU 0 241 245 673

Weight 0.06 kg

Ships in 1 day

Ships from AustraliaLocal warehouse · fast domestic delivery

Fitment guaranteeWhen you provide your VIN at checkout

OE-quality guaranteeOriginal-equipment spec, every part

Description & Specs

Trade numbers:

FQ5NPP332S
8160-4

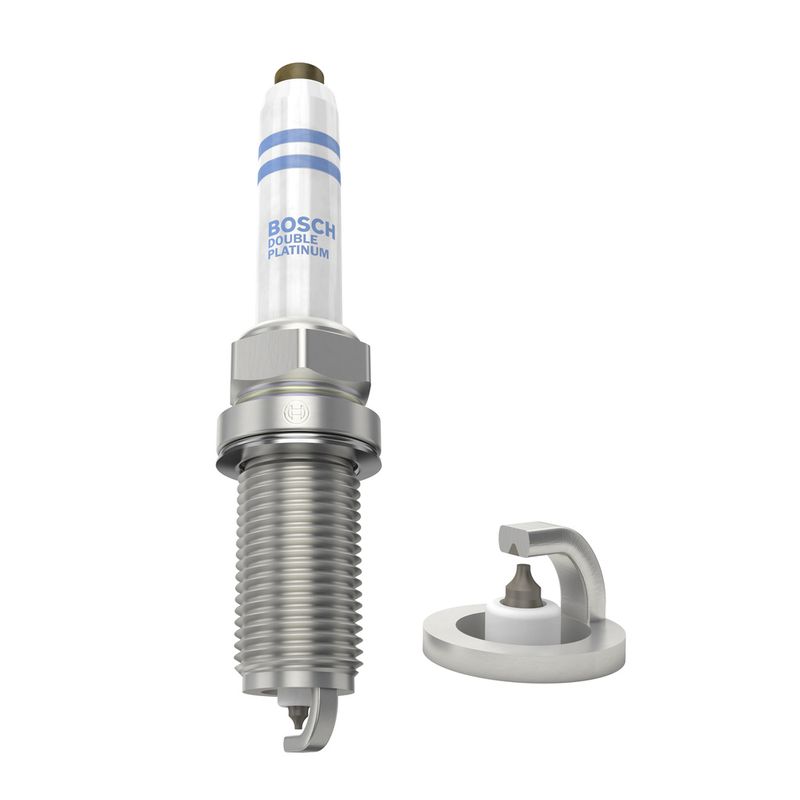

Bosch Double-Platinum Spark Plug

The Bosch double platinum spark plugs have platinum firing pins at both the centre and a ground electrode. Developed to OE specifications and designed for better performance and life.

Features and Benefits:

Outstanding spark plug technology which meets exactly the requirements of the respective engine.

Fine wire 360 degree continuous laser welded platinum firing pins and a yttrium enhanced tapered platinum ground electrode inlay for improved combustion and service life.

Large copper core center electrode enables an improved heat transfer.

Nickel-plated housing and thread for protection against corrosion and seizure in the aluminum cylinder head without the need for lubrication.

Factory pre-set electrode gap enables hassle-free replacement.

Note: Always use the Bosch installation guide when replacing your spark plugs.

Specifications

Brand Bosch

MPN 0241245673

Connector type Napf

Electrode Gap [mm] 0.7 mm

Number of pins 1 - pin connector

Spanner Size 16

Spark Position [mm] 4 mm

Thread Length [mm] 26.5 mm

Thread Size M 14 x 1,25

Tightening Torque [Nm] 28 Nm

// 03 COMPATIBILITY

Fits 149 vehicles

Verified against TecDoc. Expand a model to see variants, or use the search to narrow down.

Audi

101 variants · 22 models

Date	Badge	Chassis	Body	Fuel	Engine
03/2014 - 10/2018	S1 quattro	8X1, 8XK	Hatchback	Petrol	S1 quattro 2.0L 170kW
02/2015 - 10/2018	1.8 TFSI	8X1, 8XK	Hatchback	Petrol	1.8 TFSI 1.8L 141kW

Date	Badge	Chassis	Body	Fuel	Engine
03/2014 - 10/2018	S1 quattro	8XA, 8XF	Hatchback	Petrol	S1 quattro 2.0L 170kW
02/2015 - 10/2018	1.8 TFSI	8XA, 8XF	Hatchback	Petrol	1.8 TFSI 1.8L 141kW
09/2018 - 08/2024	40 TFSI	GBA	Hatchback	Petrol	40 TFSI 2.0L 147kW

Date	Badge	Chassis	Body	Fuel	Engine
04/2012 - 06/2016	1.8 TFSI	8V1, 8VK	Hatchback	Petrol	1.8 TFSI 1.8L 132kW
08/2012 - 06/2016	1.8 TFSI quattro	8V1, 8VK	Hatchback	Petrol	1.8 TFSI quattro 1.8L 132kW
02/2013 - 07/2014	S3 quattro	8V1, 8VK	Hatchback	Petrol	S3 quattro 2.0L 206kW
10/2013 - 06/2016	1.8 TFSI	8V7, 8VE	Convertible	Petrol	1.8 TFSI 1.8L 132kW
03/2014 - 06/2016	1.8 TFSI quattro	8V7, 8VE	Convertible	Petrol	1.8 TFSI quattro 1.8L 132kW
03/2014 - 07/2016	S3 quattro	8V7, 8VE	Convertible	Petrol	S3 quattro 2.0L 210kW
05/2014 - 08/2016	S3 quattro	8V1, 8VK	Hatchback	Petrol	S3 quattro 2.0L 210kW
05/2016 - 06/2018	2.0 TFSI	8V1, 8VK	Hatchback	Petrol	2.0 TFSI 2.0L 140kW
05/2016 - 10/2020	2.0 TFSI	8V7, 8VE	Convertible	Petrol	2.0 TFSI 2.0L 140kW
05/2016 - 10/2020	2.0 TFSI quattro	8V7, 8VE	Convertible	Petrol	2.0 TFSI quattro 2.0L 140kW
07/2016 - 12/2017	S3 quattro	8V1, 8VK	Hatchback	Petrol	S3 quattro 2.0L 213kW
11/2018 - 10/2020	40 TFSI	8V7, 8VE	Convertible	Petrol	40 TFSI 2.0L 140kW
11/2018 - 10/2020	40 TFSI quattro	8V7, 8VE	Convertible	Petrol	40 TFSI quattro 2.0L 140kW

Date	Badge	Chassis	Body	Fuel	Engine
05/2013 - 06/2016	1.8 TFSI	8VS, 8VM	Sedan	Petrol	1.8 TFSI 1.8L 132kW
10/2013 - 07/2014	S3 quattro	8VS, 8VM	Sedan	Petrol	S3 quattro 2.0L 206kW
11/2013 - 06/2016	1.8 TFSI	8VS, 8VM	Sedan	Petrol	1.8 TFSI 1.8L 125kW
11/2013 - 06/2016	1.8 TFSI quattro	8VS, 8VM	Sedan	Petrol	1.8 TFSI quattro 1.8L 132kW
05/2014 - 07/2016	S3 quattro	8VS, 8VM	Sedan	Petrol	S3 quattro 2.0L 210kW
05/2016 - 10/2020	2.0 TFSI	8VS, 8VM	Sedan	Petrol	2.0 TFSI 2.0L 140kW
05/2016 - 10/2020	2.0 TFSI quattro	8VS, 8VM	Sedan	Petrol	2.0 TFSI quattro 2.0L 140kW
08/2016 - 10/2020	S3 quattro	8VS, 8VM	Sedan	Petrol	S3 quattro 2.0L 213kW
07/2018 - 10/2020	40 TFSI	8VS, 8VM	Sedan	Petrol	40 TFSI 2.0L 140kW
07/2018 - 10/2020	40 TFSI quattro	8VS, 8VM	Sedan	Petrol	40 TFSI quattro 2.0L 140kW

Date	Badge	Chassis	Body	Fuel	Engine
09/2012 - 06/2016	1.8 TFSI	8VA, 8VF	Hatchback	Petrol	1.8 TFSI 1.8L 132kW
05/2013 - 06/2016	1.8 TFSI quattro	8VA, 8VF	Hatchback	Petrol	1.8 TFSI quattro 1.8L 132kW
05/2013 - 07/2014	S3 quattro	8VA, 8VF	Hatchback	Petrol	S3 quattro 2.0L 206kW
05/2014 - 08/2016	S3 quattro	8VA, 8VF	Hatchback	Petrol	S3 quattro 2.0L 210kW
05/2016 - 10/2020	2.0 TFSI	8VA, 8VF	Hatchback	Petrol	2.0 TFSI 2.0L 140kW
05/2016 - 10/2020	2.0 TFSI quattro	8VA, 8VF	Hatchback	Petrol	2.0 TFSI quattro 2.0L 140kW
07/2016 - 10/2020	S3 quattro	8VA, 8VF	Hatchback	Petrol	S3 quattro 2.0L 213kW
07/2018 - 10/2020	40 TFSI	8VA, 8VF	Hatchback	Petrol	40 TFSI 2.0L 140kW
07/2018 - 10/2020	40 TFSI quattro	8VA, 8VF	Hatchback	Petrol	40 TFSI quattro 2.0L 140kW

Date	Badge	Chassis	Body	Fuel	Engine
01/2016 - 01/2020	2.0 TFSI quattro	8WH, 8WJ	Wagon	Petrol	2.0 TFSI quattro 2.0L 185kW

Date	Badge	Chassis	Body	Fuel	Engine
11/2011 - 12/2015	1.8 TFSI	8K2	Sedan	Petrol	1.8 TFSI 1.8L 125kW
05/2013 - 12/2015	2.0 TFSI	8K2	Sedan	Petrol	2.0 TFSI 2.0L 165kW
05/2013 - 12/2015	2.0 TFSI quattro	8K2	Sedan	Petrol	2.0 TFSI quattro 2.0L 165kW

Date	Badge	Chassis	Body	Fuel	Engine
11/2011 - 12/2015	1.8 TFSI	8K5	Wagon	Petrol	1.8 TFSI 1.8L 125kW
05/2013 - 12/2015	2.0 TFSI	8K5	Wagon	Petrol	2.0 TFSI 2.0L 165kW
05/2013 - 12/2015	2.0 TFSI quattro	8K5	Wagon	Petrol	2.0 TFSI quattro 2.0L 165kW

Date	Badge	Chassis	Body	Fuel	Engine
05/2015 - 12/2019	2.0 TFSI	8W2, 8WC	Sedan	Petrol	2.0 TFSI 2.0L 140kW
05/2015 - 12/2019	2.0 TFSI quattro	8W2, 8WC	Sedan	Petrol	2.0 TFSI quattro 2.0L 185kW
12/2018 - onwards	35 TFSI Mild Hybrid	8W2, 8WC	Sedan	Petrol/electric	35 TFSI Mild Hybrid 2.0L 110kW

Date	Badge	Chassis	Body	Fuel	Engine
08/2015 - 12/2019	2.0 TFSI	8W5, 8WD	Wagon	Petrol	2.0 TFSI 2.0L 140kW
08/2015 - 12/2019	2.0 TFSI	8W5, 8WD	Wagon	Petrol	2.0 TFSI 2.0L 140kW
08/2015 - 10/2019	2.0 TFSI quattro	8W5, 8WD	Wagon	Petrol	2.0 TFSI quattro 2.0L 185kW

Date	Badge	Chassis	Body	Fuel	Engine
10/2007 - 01/2017	1.8 TFSI	8T3	Coupe	Petrol	1.8 TFSI 1.8L 125kW
09/2011 - 03/2016	1.8 TFSI	8F7	Convertible	Petrol	1.8 TFSI 1.8L 125kW
05/2013 - 05/2016	2.0 TFSI quattro	8T3	Coupe	Petrol	2.0 TFSI quattro 2.0L 165kW
05/2013 - 05/2016	2.0 TFSI quattro	8F7	Convertible	Petrol	2.0 TFSI quattro 2.0L 165kW
05/2015 - 01/2017	1.8 TFSI	8T3	Coupe	Petrol	1.8 TFSI 1.8L 130kW
05/2015 - 01/2017	1.8 TFSI	8F7	Convertible	Petrol	1.8 TFSI 1.8L 130kW
08/2015 - 01/2017	2.0 TFSI quattro	8T3	Coupe	Petrol	2.0 TFSI quattro 2.0L 169kW
08/2015 - 01/2017	2.0 TFSI quattro	8F7	Convertible	Petrol	2.0 TFSI quattro 2.0L 169kW
06/2016 - 12/2019	2.0 TFSI quattro	F53, F5P	Coupe	Petrol	2.0 TFSI quattro 2.0L 185kW
09/2016 - 12/2019	2.0 TFSI	F53, F5P	Coupe	Petrol	2.0 TFSI 2.0L 140kW
11/2016 - 02/2020	2.0 TFSI quattro	F57, F5E	Convertible	Petrol	2.0 TFSI quattro 2.0L 185kW
03/2017 - 12/2019	2.0 TFSI	F57, F5E	Convertible	Petrol	2.0 TFSI 2.0L 140kW
02/2020 - 02/2020	2.0 TFSI Mild Hybrid quattro	F53, F5P	Coupe	Petrol/electric	2.0 TFSI Mild Hybrid quattro 2.0L 185kW
02/2020 - 02/2020	2.0 TFSI Mild Hybrid quattro	F53, F5P	Coupe	Petrol/electric	2.0 TFSI Mild Hybrid quattro 2.0L 185kW
02/2020 - onwards	40 TFSI Mild Hybrid	F53, F5P	Coupe	Petrol/electric	40 TFSI Mild Hybrid 2.0L 140kW
02/2020 - onwards	40 TFSI Mild Hybrid	F53, F5P	Coupe	Petrol/electric	40 TFSI Mild Hybrid 2.0L 140kW
02/2020 - onwards	2.0 TFSI Mild Hybrid quattro	F57, F5E	Convertible	Petrol/electric	2.0 TFSI Mild Hybrid quattro 2.0L 185kW
02/2020 - onwards	2.0 TFSI Mild Hybrid quattro	F57, F5E	Convertible	Petrol/electric	2.0 TFSI Mild Hybrid quattro 2.0L 185kW
02/2020 - onwards	40 TFSI Mild Hybrid	F57, F5E	Convertible	Petrol/electric	40 TFSI Mild Hybrid 2.0L 140kW
02/2020 - onwards	40 TFSI Mild Hybrid	F57, F5E	Convertible	Petrol/electric	40 TFSI Mild Hybrid 2.0L 140kW

Date	Badge	Chassis	Body	Fuel	Engine
08/2011 - 01/2017	1.8 TFSI	8TA	Hatchback	Petrol	1.8 TFSI 1.8L 125kW
05/2013 - 05/2016	2.0 TFSI quattro	8TA	Hatchback	Petrol	2.0 TFSI quattro 2.0L 165kW
05/2015 - 01/2017	1.8 TFSI	8TA	Hatchback	Petrol	1.8 TFSI 1.8L 130kW
08/2015 - 01/2017	2.0 TFSI quattro	8TA	Hatchback	Petrol	2.0 TFSI quattro 2.0L 169kW
09/2016 - 12/2019	2.0 TFSI quattro	F5A, F5F	Hatchback	Petrol	2.0 TFSI quattro 2.0L 185kW
09/2016 - 12/2019	2.0 TFSI quattro	F5A, F5F	Hatchback	Petrol	2.0 TFSI quattro 2.0L 185kW
01/2017 - 12/2019	2.0 TFSI	F5A, F5F	Hatchback	Petrol	2.0 TFSI 2.0L 140kW
02/2020 - 02/2020	2.0 TFSI Mild Hybrid quattro	F5A, F5F	Hatchback	Petrol/electric	2.0 TFSI Mild Hybrid quattro 2.0L 185kW
02/2020 - 02/2020	2.0 TFSI Mild Hybrid quattro	F5A, F5F	Hatchback	Petrol/electric	2.0 TFSI Mild Hybrid quattro 2.0L 185kW
02/2020 - onwards	40 TFSI Mild Hybrid	F5A, F5F	Hatchback	Petrol/electric	40 TFSI Mild Hybrid 2.0L 140kW

Date	Badge	Chassis	Body	Fuel	Engine
05/2014 - 09/2018	2.0 TFSI quattro	4G2, 4GC	Sedan	Petrol	2.0 TFSI quattro 2.0L 185kW
09/2014 - 09/2018	1.8 TFSI	4G2, 4GC	Sedan	Petrol	1.8 TFSI 1.8L 140kW

Date	Badge	Chassis	Body	Fuel	Engine
08/2018 - onwards	45 TFSI Mild Hybrid quattro	4A2	Sedan	Petrol/electric	45 TFSI Mild Hybrid quattro 2.0L 180kW
02/2019 - onwards	40 TFSI Mild Hybrid	4A2	Sedan	Petrol/electric	40 TFSI Mild Hybrid 2.0L 140kW

Date	Badge	Chassis	Body	Fuel	Engine
05/2015 - 05/2018	2.0 TFSI quattro	4GA, 4GF	Hatchback	Petrol	2.0 TFSI quattro 2.0L 185kW
07/2018 - onwards	45 TFSI Mild hybrid quattro	4KA	Hatchback	Petrol/electric	45 TFSI Mild hybrid quattro 2.0L 180kW

Date	Badge	Chassis	Body	Fuel	Engine
05/2017 - 08/2018	2.0 TFSI quattro	GAB, GAG	Suv	Petrol	2.0 TFSI quattro 2.0L 140kW

Date	Badge	Chassis	Body	Fuel	Engine
11/2014 - 10/2018	2.0 TFSI quattro	8UB, 8UG	Suv	Petrol	2.0 TFSI quattro 2.0L 132kW
02/2021 - onwards	40 TFSI quattro	F3B	Suv	Petrol	40 TFSI quattro 2.0L 132kW

Date	Badge	Chassis	Body	Fuel	Engine
06/2019 - onwards	40 TFSI quattro	F3N	Suv	Petrol	40 TFSI quattro 2.0L 132kW

Date	Badge	Chassis	Body	Fuel	Engine
06/2012 - 04/2017	2.0 TFSI quattro	8RB	Suv	Petrol	2.0 TFSI quattro 2.0L 165kW
08/2015 - 05/2017	2.0 TFSI quattro	8RB	Suv	Petrol	2.0 TFSI quattro 2.0L 169kW

Date	Badge	Chassis	Body	Fuel	Engine
08/2015 - onwards	2.0 TFSI quattro	4MB, 4MG, 4MQ	Suv	Petrol	2.0 TFSI quattro 2.0L 185kW
08/2015 - onwards	2.0 TFSI quattro	4MB, 4MG, 4MQ	Suv	Petrol	2.0 TFSI quattro 2.0L 185kW

Date	Badge	Chassis	Body	Fuel	Engine
07/2014 - 03/2019	2.0 TFSI	FV3, FVP	Coupe	Petrol	2.0 TFSI 2.0L 169kW
07/2014 - 06/2020	2.0 TFSI quattro	FV3, FVP	Coupe	Petrol	2.0 TFSI quattro 2.0L 169kW
02/2015 - onwards	2.0 TTS TFSI quattro	FV3, FVP	Coupe	Petrol	2.0 TTS TFSI quattro 2.0L 210kW
07/2018 - onwards	45 TFSI quattro	FV3, FVP	Coupe	Petrol	45 TFSI quattro 2.0L 180kW

Date	Badge	Chassis	Body	Fuel	Engine
11/2014 - 03/2019	2.0 TFSI	FV9, FVR	Convertible	Petrol	2.0 TFSI 2.0L 169kW
11/2014 - 03/2019	2.0 TFSI quattro	FV9, FVR	Convertible	Petrol	2.0 TFSI quattro 2.0L 169kW
02/2015 - 03/2019	2.0 TTS TFSI quattro	FV9, FVR	Convertible	Petrol	2.0 TTS TFSI quattro 2.0L 210kW

Porsche

1 variants · 1 models

Date	Badge	Chassis	Body	Fuel	Engine
05/2015 - 06/2021	2.0	95B	Suv	Petrol	2.0 2.0L 185kW

Skoda

18 variants · 6 models

Date	Badge	Chassis	Body	Fuel	Engine
10/2016 - onwards	2.0 TSI 4x4	NS6, NS7, NV7	Suv	Petrol	2.0 TSI 4x4 2.0L 132kW

Date	Badge	Chassis	Body	Fuel	Engine
11/2012 - 04/2015	1.8 TSI	5E3, NL3, NR3	Hatchback	Petrol	1.8 TSI 1.8L 132kW
05/2013 - 01/2017	2.0 TSI RS	5E3, NL3, NR3	Hatchback	Petrol	2.0 TSI RS 2.0L 162kW
05/2015 - 06/2018	2.0 TSI RS	5E3, NL3, NR3	Hatchback	Petrol	2.0 TSI RS 2.0L 169kW
02/2017 - 10/2020	2.0 TSI RS	5E3, NL3, NR3	Hatchback	Petrol	2.0 TSI RS 2.0L 180kW

Date	Badge	Chassis	Body	Fuel	Engine
11/2012 - 04/2015	1.8 TSI	5E5, 5E6	Wagon	Petrol	1.8 TSI 1.8L 132kW
11/2012 - 01/2017	1.8 TSI 4x4	5E5, 5E6	Wagon	Petrol	1.8 TSI 4x4 1.8L 132kW
11/2012 - 01/2017	2.0 TSI RS	5E5, 5E6	Wagon	Petrol	2.0 TSI RS 2.0L 162kW
05/2015 - 10/2020	2.0 TSI RS	5E5, 5E6	Wagon	Petrol	2.0 TSI RS 2.0L 169kW
02/2017 - 10/2020	2.0 TSI RS	5E5, 5E6	Wagon	Petrol	2.0 TSI RS 2.0L 180kW

Date	Badge	Chassis	Body	Fuel	Engine
07/2020 - onwards	2.0 TSI	NX3, NN3, PV3	Hatchback	Petrol	2.0 TSI 2.0L 140kW
01/2021 - 07/2024	2.0 TSI RS	NX3, NN3, PV3	Hatchback	Petrol	2.0 TSI RS 2.0L 180kW

Date	Badge	Chassis	Body	Fuel	Engine
09/2020 - onwards	2.0 TSI	NX5, PV5	Wagon	Petrol	2.0 TSI 2.0L 140kW
01/2021 - onwards	2.0 TSI RS	NX5, PV5	Wagon	Petrol	2.0 TSI RS 2.0L 180kW

Date	Badge	Chassis	Body	Fuel	Engine
03/2015 - 06/2023	2.0 TSI	3V3	Hatchback	Petrol	2.0 TSI 2.0L 162kW
03/2015 - 06/2023	2.0 TSI	3V5	Wagon	Petrol	2.0 TSI 2.0L 162kW
03/2015 - 06/2024	2.0 TSI 4x4	3V3	Hatchback	Petrol	2.0 TSI 4x4 2.0L 206kW
03/2015 - 06/2024	2.0 TSI 4x4	3V5	Wagon	Petrol	2.0 TSI 4x4 2.0L 206kW

29 variants · 14 models

Date	Badge	Chassis	Body	Fuel	Engine
05/2017 - 06/2021	2.0 TSI	3H7, 3H8	Hatchback	Petrol	2.0 TSI 2.0L 140kW

Date	Badge	Chassis	Body	Fuel	Engine
09/2020 - 06/2021	2.0 TSi	3H9	Wagon	Petrol	2.0 TSi 2.0L 140kW

Date	Badge	Chassis	Body	Fuel	Engine
12/2014 - 12/2020	1.8 TSI 4motion	BA5, BV5	Wagon	Petrol	1.8 TSI 4motion 1.8L 132kW

Date	Badge	Chassis	Body	Fuel	Engine
04/2013 - 01/2017	2.0 GTI	5G1, BQ1, BE1, BE2	Hatchback	Petrol	2.0 GTI 2.0L 162kW
04/2013 - 07/2018	2.0 GTI	5G1, BQ1, BE1, BE2	Hatchback	Petrol	2.0 GTI 2.0L 169kW
11/2013 - 01/2017	2.0 R 4motion	5G1, BQ1, BE1, BE2	Hatchback	Petrol	2.0 R 4motion 2.0L 206kW
02/2016 - 03/2017	2.0 GTI Clubsport	5G1, BQ1, BE1, BE2	Hatchback	Petrol	2.0 GTI Clubsport 2.0L 195kW
12/2016 - 12/2020	2.0 R 4motion	5G1, BQ1, BE1, BE2	Hatchback	Petrol	2.0 R 4motion 2.0L 213kW
03/2017 - 12/2020	2.0 GTI	5G1, BQ1, BE1, BE2	Hatchback	Petrol	2.0 GTI 2.0L 180kW

Date	Badge	Chassis	Body	Fuel	Engine
03/2015 - 03/2017	2.0 R 4motion	BA5, BV5	Wagon	Petrol	2.0 R 4motion 2.0L 206kW

Date	Badge	Chassis	Body	Fuel	Engine
08/2020 - 09/2024	2.0 GTI	CD1, DA1	Hatchback	Petrol	2.0 GTI 2.0L 180kW

Date	Badge	Chassis	Body	Fuel	Engine
12/2012 - 12/2017	2.0 TSI	162, 163, AV3, AV2	Sedan	Petrol	2.0 TSI 2.0L 155kW

Date	Badge	Chassis	Body	Fuel	Engine
07/2015 - 03/2024	2.0 TSI 4motion	3G5, CB5	Wagon	Petrol	2.0 TSI 4motion 2.0L 162kW

Date	Badge	Chassis	Body	Fuel	Engine
02/2015 - 07/2019	1.8 TSI	3G2, CB2	Sedan	Petrol	1.8 TSI 1.8L 132kW
11/2016 - 09/2019	2.0 TSI 4motion	3G2, CB2	Sedan	Petrol	2.0 TSI 4motion 2.0L 206kW
11/2016 - 09/2019	2.0 TSI 4motion	3G2, CB2	Sedan	Petrol	2.0 TSI 4motion 2.0L 206kW
11/2018 - 03/2024	2.0 TSI	3G2, CB2	Sedan	Petrol	2.0 TSI 2.0L 140kW
09/2020 - 03/2024	2.0 TSI	3G2, CB2	Sedan	Petrol	2.0 TSI 2.0L 162kW

Date	Badge	Chassis	Body	Fuel	Engine
08/2014 - 03/2024	2.0 TSI	3G5, CB5	Wagon	Petrol	2.0 TSI 2.0L 162kW
02/2015 - 09/2019	1.8 TSI	3G5, CB5	Wagon	Petrol	1.8 TSI 1.8L 132kW
11/2016 - 09/2019	2.0 TSI 4motion	3G5, CB5	Wagon	Petrol	2.0 TSI 4motion 2.0L 206kW
11/2018 - 11/2020	2.0 TSI	3G5, CB5	Wagon	Petrol	2.0 TSI 2.0L 140kW

Date	Badge	Chassis	Body	Fuel	Engine
11/2014 - 11/2017	1.8 GTI	6R1, 6C1	Hatchback	Petrol	1.8 GTI 1.8L 141kW
11/2014 - 11/2017	1.8 GTI	6R1, 6C1	Hatchback	Petrol	1.8 GTI 1.8L 141kW

Date	Badge	Chassis	Body	Fuel	Engine
11/2017 - 11/2021	2.0 GTI	AW1, BZ1, AE1	Hatchback	Petrol	2.0 GTI 2.0L 147kW
11/2017 - 11/2021	2.0 GTI	AW1, BZ1, AE1	Hatchback	Petrol	2.0 GTI 2.0L 147kW

Date	Badge	Chassis	Body	Fuel	Engine
07/2017 - onwards	2.0 TSI 4motion	A11, D11	Suv	Petrol	2.0 TSI 4motion 2.0L 140kW

Date	Badge	Chassis	Body	Fuel	Engine
01/2016 - 06/2023	2.0 TSI 4motion	AD1, AX1	Suv	Petrol	2.0 TSI 4motion 2.0L 132kW
06/2016 - 06/2023	2.0 TSI 4motion	AD1, AX1	Suv	Petrol	2.0 TSI 4motion 2.0L 162kW

Manufacturer	Numbers
AUDI	06K905601A , 06K905601B , 06K905601C , 06K905601E , 06K905611C , L06K905601E
PORSCHE	95890560100
SEAT	06K905601A , 06K905601B , 06K905601C , 06K905601E , 06K905611C , L06K905601E
SKODA	06K905601A , 06K905601B , 06K905601C , 06K905601E , 06K905611C , L06K905601E
VW	06K905601A , 06K905601B , 06K905601C , 06K905601E , 06K905611C , 0K6905601B , 0K6905621 , L06K905601E

Brand	References
NGK	94833
TOPRAN	629 902
VEMO	V99-75-0090

Trade numbers
8160-4
FQ 5 NPP 332 S

// 04 DOWNLOADS & MEDIA

Guides, specs & videos

Manufacturer documentation and install walkthroughs.

DOCUMENTS

PDF Installation ManualArticle Picture

Select Your Vehicle

No vehicles saved

Recently Deleted
