Description & Specs

Trade numbers:

  • FR 6 KPP 33+

  • +55

  • 8154

  • 8154-4

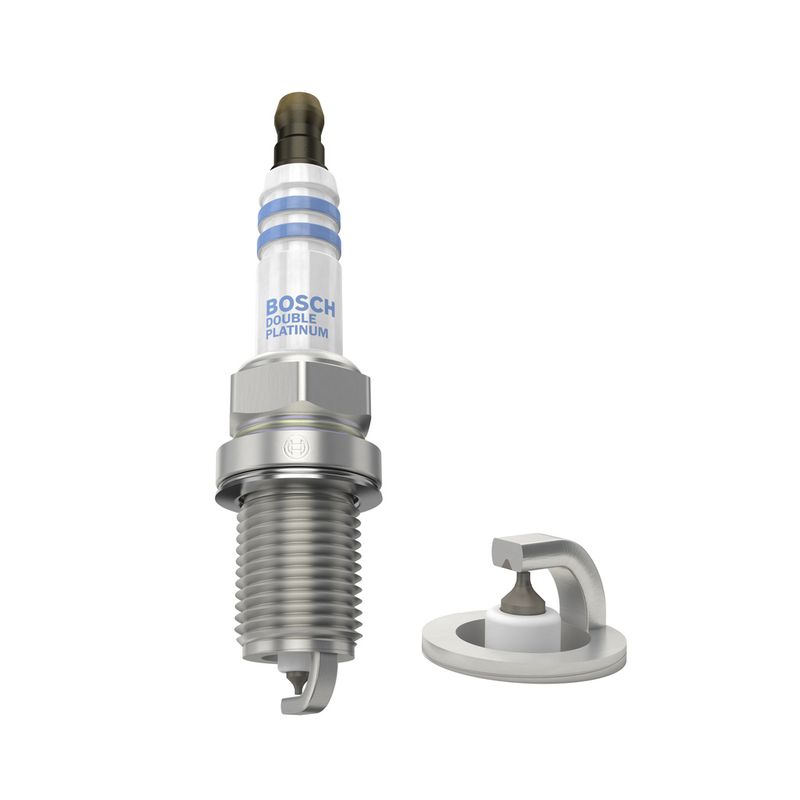

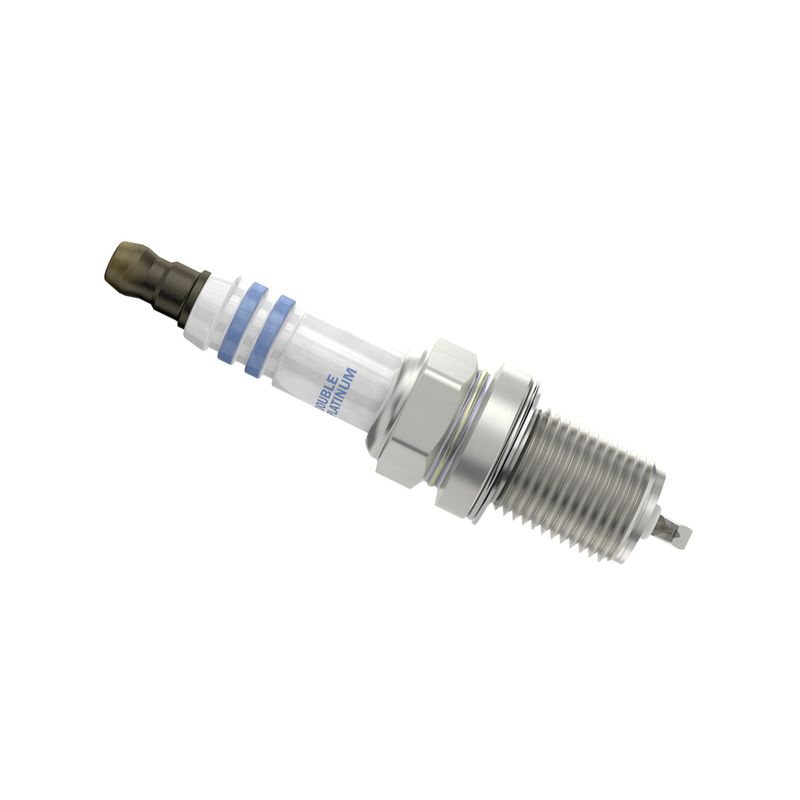

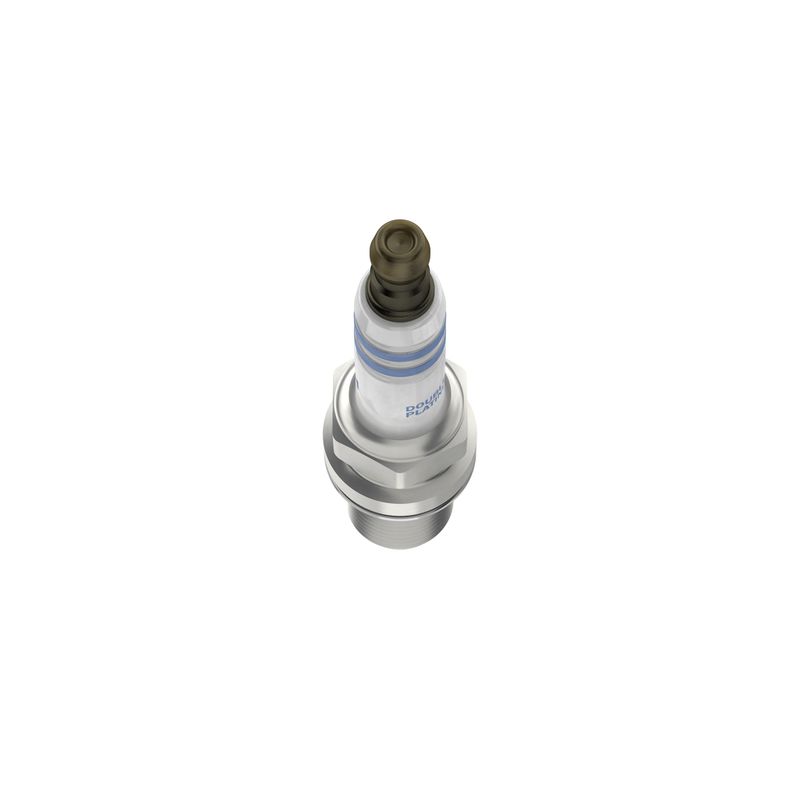

Bosch Double-Platinum Spark Plug

The Bosch double platinum spark plugs have platinum firing pins at both the centre and a ground electrode. Developed to OE specifications and designed for better performance and life.

Features and Benefits:

Outstanding spark plug technology which meets exactly the requirements of the respective engine.

Fine wire 360 degree continuous laser welded platinum firing pins and a yttrium enhanced tapered platinum ground electrode inlay for improved combustion and service life.

Large copper core center electrode enables an improved heat transfer.

Nickel-plated housing and thread for protection against corrosion and seizure in the aluminum cylinder head without the need for lubrication.

Factory pre-set electrode gap enables hassle-free replacement.

Note: Always use the Bosch installation guide when replacing your spark plugs.

Specifications

Brand Bosch
MPN 0242240650
Electrode Gap [mm] 0.8 mm
Number of pins 1 - pin connector
Spanner Size 16
Spark Position [mm] 4 mm
Thread Length [mm] 19 mm
Thread Size M 14 x 1,25
Tightening Torque [Nm] 28 Nm
// 03 COMPATIBILITY

Fits 75 vehicles

Verified against TecDoc. Expand a model to see variants, or use the search to narrow down.

Audi
15 variants · 9 models
Date Badge Chassis Body Fuel Engine
05/2000 - 09/2001 RS4 quattro 8D5 Wagon Petrol RS4 quattro 2.7L 280kW

Date Badge Chassis Body Fuel Engine
05/2005 - 06/2008 3.2 FSI 8EC Sedan Petrol 3.2 FSI 3.1L 188kW

05/2005 - 06/2008 3.2 FSI quattro 8EC Sedan Petrol 3.2 FSI quattro 3.1L 188kW

09/2005 - 06/2008 RS4 quattro 8EC Sedan Petrol RS4 quattro 4.2L 309kW

01/2006 - 03/2009 3.2 FSI 8HE Convertible Petrol 3.2 FSI 3.1L 188kW

01/2006 - 03/2009 3.2 FSI quattro 8HE Convertible Petrol 3.2 FSI quattro 3.1L 188kW

Date Badge Chassis Body Fuel Engine
01/2005 - 06/2008 3.2 FSI quattro 8ED Wagon Petrol 3.2 FSI quattro 3.1L 188kW

Date Badge Chassis Body Fuel Engine
07/2002 - 01/2005 RS6 quattro 4B2, 4B4 Sedan Petrol RS6 quattro 4.2L 331kW

Date Badge Chassis Body Fuel Engine
07/2002 - 01/2005 RS6 quattro 4B5, 4B6 Wagon Petrol RS6 quattro 4.2L 331kW

Date Badge Chassis Body Fuel Engine
07/2005 - 05/2009 3.2 FSI 4F2 Sedan Petrol 3.2 FSI 3.1L 188kW

07/2005 - 10/2008 3.2 FSI quattro 4F2 Sedan Petrol 3.2 FSI quattro 3.1L 188kW

Date Badge Chassis Body Fuel Engine
07/2005 - 10/2008 3.2 FSI quattro 4F5 Wagon Petrol 3.2 FSI quattro 3.1L 188kW

Date Badge Chassis Body Fuel Engine
06/2005 - 07/2010 3.2 FSI 4E2, 4E8 Sedan Petrol 3.2 FSI 3.1L 191kW

06/2005 - 07/2010 3.2 FSI quattro 4E2, 4E8 Sedan Petrol 3.2 FSI quattro 3.1L 191kW

Date Badge Chassis Body Fuel Engine
04/2007 - 09/2010 4.2 FSI quattro 422, 423 Coupe Petrol 4.2 FSI quattro 4.2L 309kW

Daihatsu
1 variants · 1 models
Date Badge Chassis Body Fuel Engine
10/2003 - 12/2006 0.7 (L880) L880, L881 Convertible Petrol 0.7 (L880) 0.7L 50kW

Holden
1 variants · 1 models
Date Badge Chassis Body Fuel Engine
03/2007 - 12/2011 2.5 i EP Sedan Petrol 2.5 i 2.5L 115kW

Saab
12 variants · 5 models
Date Badge Chassis Body Fuel Engine
02/1998 - 09/2002 2.3 i YS3D Hatchback Petrol 2.3 i 2.3L 110kW

Date Badge Chassis Body Fuel Engine
02/1998 - 08/2003 2.3 i YS3D Convertible Petrol 2.3 i 2.3L 110kW

Date Badge Chassis Body Fuel Engine
01/1989 - 12/1993 2.0 -16 AC4, AM4 Sedan Petrol 2.0 -16 2.0L 93kW

01/1989 - 12/1993 2.0 -16 AC4, AM4 Sedan Petrol 2.0 -16 2.0L 93kW

01/1990 - 06/1994 2.0 -16 900 I Convertible Petrol 2.0 -16 2.0L 93kW

08/1990 - 12/1993 2.1 -16 AC4, AM4 Sedan Petrol 2.1 -16 2.1L 100kW

08/1990 - 06/1994 2.1 -16 900 I Convertible Petrol 2.1 -16 2.1L 100kW

Date Badge Chassis Body Fuel Engine
09/1990 - 07/1993 2.1 -16 900 I Combi Coupe Hatchback Petrol 2.1 -16 2.1L 100kW

Date Badge Chassis Body Fuel Engine
07/1993 - 07/1994 2.0 i 900 II Hatchback Petrol 2.0 i 2.0L 98kW

12/1993 - 07/1994 2.0 i 900 II Coupe Petrol 2.0 i 2.0L 98kW

12/1993 - 02/1998 2.0 i 900 II Convertible Petrol 2.0 i 2.0L 96kW

12/1993 - 02/1998 2.3 -16 S 900 II Convertible Petrol 2.3 -16 S 2.3L 110kW

Subaru
16 variants · 5 models
Date Badge Chassis Body Fuel Engine
09/1998 - 12/2000 2.0 S Turbo AWD (SF5) SF Suv Petrol 2.0 S Turbo AWD (SF5) 2.0L 125kW

12/2000 - 07/2002 2.0 S Turbo AWD (SF5) SF Suv Petrol 2.0 S Turbo AWD (SF5) 2.0L 130kW

02/2002 - 12/2008 2.0 S Turbo AWD (SG5) SG Suv Petrol 2.0 S Turbo AWD (SG5) 2.0L 130kW

Date Badge Chassis Body Fuel Engine
11/1992 - 09/1998 2.0 i WRX AWD (GC8) GC Sedan Petrol 2.0 i WRX AWD (GC8) 2.0L 155kW

02/1994 - 09/1998 2.0 i WRX AWD (GF8) GF Wagon Petrol 2.0 i WRX AWD (GF8) 2.0L 155kW

12/2002 - 03/2007 2.0 WRX Turbo AWD (GDA) GD Sedan Petrol 2.0 WRX Turbo AWD (GDA) 2.0L 165kW

12/2002 - 09/2005 2.0 i WRX AWD (GDA) GD Sedan Petrol 2.0 i WRX AWD (GDA) 2.0L 168kW

10/2005 - 03/2007 2.0 AWD (GDA) GD Sedan Petrol 2.0 AWD (GDA) 2.0L 184kW

10/2005 - 03/2007 2.0 AWD (GDB) GD Sedan Petrol 2.0 AWD (GDB) 2.0L 206kW

Date Badge Chassis Body Fuel Engine
12/2002 - 09/2006 2.0 WRX Turbo AWD (GGA) GG Wagon Petrol 2.0 WRX Turbo AWD (GGA) 2.0L 165kW

01/2005 - 12/2006 2.0 WRX AWD (GGA) GG Wagon Petrol 2.0 WRX AWD (GGA) 2.0L 169kW

Date Badge Chassis Body Fuel Engine
10/1991 - 07/1994 RS 4WD (BC5) BC Sedan Petrol RS 4WD (BC5) 2.0L 147kW

10/1991 - 07/1994 RS 4WD (BF5) BC, BF, BJ Wagon Petrol RS 4WD (BF5) 2.0L 147kW

Date Badge Chassis Body Fuel Engine
10/1998 - 08/2003 2.0 GT AWD (BH5) BH Wagon Petrol 2.0 GT AWD (BH5) 2.0L 191kW

10/1998 - 08/2003 2.0 RSK AWD (BE5) BE Sedan Petrol 2.0 RSK AWD (BE5) 2.0L 191kW

06/2002 - 08/2003 2.0 AWD (BE5) BE Sedan Petrol 2.0 AWD (BE5) 2.0L 206kW

Toyota
30 variants · 11 models
Date Badge Chassis Body Fuel Engine
10/1990 - 09/1996 3.0 (JZS147) S14 Sedan Petrol 3.0 (JZS147) 3.0L 205kW

10/1992 - 07/1997 4.0 4WD (UZS143) S14 Sedan Petrol 4.0 4WD (UZS143) 4.0L 173kW

Date Badge Chassis Body Fuel Engine
07/1994 - 09/1997 2.0 (ST195) T19 Wagon Petrol 2.0 (ST195) 2.0L 129kW

10/1997 - 09/2001 2.0 4WD (ST215W, ST215W) T21 Wagon Petrol 2.0 4WD (ST215W, ST215W) 2.0L 140kW

02/2000 - 09/2001 2.0 4WD (ST215W, ST215W) T21 Wagon Petrol 2.0 4WD (ST215W, ST215W) 2.0L 192kW

Date Badge Chassis Body Fuel Engine
06/1988 - 02/1993 2.5 (VZV21R) V2 Sedan Petrol 2.5 (VZV21R) 2.5L 118kW

Date Badge Chassis Body Fuel Engine
09/1989 - 10/1993 2.0 (ST182, ST182) T18 Coupe Petrol 2.0 (ST182, ST182) 2.0L 118kW

10/1989 - 01/1994 2.0 (ST182, ST183) T18 Coupe Petrol 2.0 (ST182, ST183) 2.0L 115kW

10/1989 - 01/1994 2.0 4WD (ST185) T18 Coupe Petrol 2.0 4WD (ST185) 2.0L 153kW

03/1990 - 12/1992 2.0 4WD (ST185) T18 Coupe Petrol 2.0 4WD (ST185) 2.0L 150kW

11/1993 - 08/1999 2.0 i 16V (ST202) T20 Convertible Petrol 2.0 i 16V (ST202) 2.0L 125kW

02/1994 - 10/1995 2.0 i Turbo 4WD (ST205) T20 Coupe Petrol 2.0 i Turbo 4WD (ST205) 2.0L 178kW

08/1994 - 08/1999 2.0 GTi (ST202) T20 Convertible Petrol 2.0 GTi (ST202) 2.0L 129kW

Date Badge Chassis Body Fuel Engine
12/1988 - 04/1993 4.0 (UCF10, UCF11) UCF1 Sedan Petrol 4.0 (UCF10, UCF11) 4.0L 180kW

Date Badge Chassis Body Fuel Engine
06/1991 - 08/1998 1.6 i 20V (AE101) E10 Sedan Petrol 1.6 i 20V (AE101) 1.6L 117kW

08/1998 - 08/2000 1.6 i 20V (AE111) E11 Sedan Petrol 1.6 i 20V (AE111) 1.6L 115kW

Date Badge Chassis Body Fuel Engine
10/1992 - 09/1996 2.5 (JZX90) MARK II VI Sedan Petrol 2.5 (JZX90) 2.5L 206kW

Date Badge Chassis Body Fuel Engine
12/1989 - 09/1999 2.0 16V (SW20, SW20R) SW2 Coupe Petrol 2.0 16V (SW20, SW20R) 2.0L 115kW

12/1989 - 05/2000 2.0 16V (SW20, SW20R) SW2 Coupe Petrol 2.0 16V (SW20, SW20R) 2.0L 125kW

12/1989 - 07/1999 2.0 Turbo (SW20, SW20R) SW2 Coupe Petrol 2.0 Turbo (SW20, SW20R) 2.0L 167kW

12/1989 - 07/1999 2.0 Turbo (SW20, SW20R) SW2 Coupe Petrol 2.0 Turbo (SW20, SW20R) 2.0L 167kW

Date Badge Chassis Body Fuel Engine
09/1986 - 03/1991 2.0 Turbo (GZ20) Z2 Coupe Petrol 2.0 Turbo (GZ20) 2.0L 136kW

09/1986 - 03/1991 3.0 Turbo (MZ20, MZ21) Z2 Coupe Petrol 3.0 Turbo (MZ20, MZ21) 3.0L 170kW

09/1990 - 09/2000 2.5 Turbo (JZZ30) Z3 Coupe Petrol 2.5 Turbo (JZZ30) 2.5L 206kW

05/1991 - 09/1997 4.0 (UZZ31, UZZ32, UZZ30) Z3 Coupe Petrol 4.0 (UZZ31, UZZ32, UZZ30) 4.0L 191kW

Date Badge Chassis Body Fuel Engine
12/1989 - 12/1995 1.3 Turbo (EP82, EP82) P8 Hatchback Petrol 1.3 Turbo (EP82, EP82) 1.3L 99kW

Date Badge Chassis Body Fuel Engine
09/1987 - 04/1993 3.0 Turbo (MA70, MA70) A7 Coupe Petrol 3.0 Turbo (MA70, MA70) 3.0L 173kW

09/1987 - 04/1993 3.0 Turbo (MA70, MA70) A7 Coupe Petrol 3.0 Turbo (MA70, MA70) 3.0L 173kW

08/1988 - 04/1993 3.0 Turbo (MA70) A7 Coupe Petrol 3.0 Turbo (MA70) 3.0L 175kW

08/1990 - 05/1993 2.5 i Bi-Turbo (JZA70) A7 Coupe Petrol 2.5 i Bi-Turbo (JZA70) 2.5L 206kW

Manufacturer Numbers
AUDI 101000063AC , 101905621
BRILLIANCE 471Q3707800
CHANGAN 471Q3707800
CHANGFENG 471Q3707800
DAIHATSU 9004851166000
DONGFENG (DFAC) 471Q3707800
FOTON 471Q3707800
HAFEI 471Q3707800
NISSAN 22401WA067
OPEL 32017043
SAAB 0200129 , 32009439 , 9139643
SCANIA 5958798
SOUEAST 471Q3707800
SUBARU 22401AA510 , 22401AA530 , 22401AA600
TOYOTA 9091901145 , 9091901146 , 9091901181
VW 101000063AC , 101905621
ZHONGHUA (BRILLIANCE) 471Q3707800
ZOTYE 471Q3707800
Brand References
FEBI BILSTEIN 13603
NGK 4589
Trade numbers
8154
8154-4
FR 6 KPP 33+
// 04 DOWNLOADS & MEDIA

Guides, specs & videos

Manufacturer documentation and install walkthroughs.

DOCUMENTS

PDF Installation ManualArticle Picture
